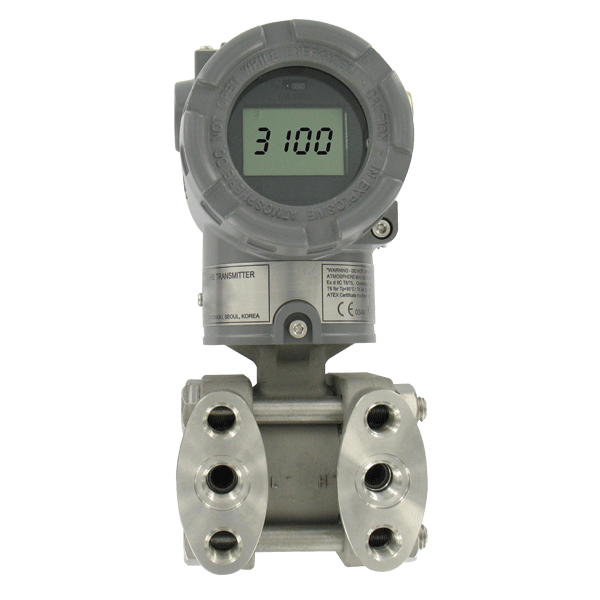

您當前的位置：首頁產品中心Dwyer 防爆差壓變送器 3100D系列
HART? Communication, Push Button Configuration, Rangeability (100:1)
Mercoid?系列3100D智能壓力變送器是一種基于微處理器的高性能變送器，具有靈活的壓力校準，按鈕配置，并使用HART?通信可編程。該系列3100D能夠配置差壓或水平應用程序的零點和跨度按鈕。配置時不需要現場校準器。變送器軟件補償熱效應，提高性能。EEPROM存儲配置設置并存儲傳感器校正系數，以備停機或斷電時使用。3100D系列是FM或ATEX批準用于危險(分類)場所。100:1量程允許智能變送器配置適合任何應用。
應用及案例
? Flow measurement
? Level monitoring
? Filter or pump differential pressure
? Critical process monitoring
產品特色
? Configurable using zero/span buttons means no calibrator required reducing time to install and running
? Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications
? High accuracy (±0.075%) provides exceptional measurement for ensuring tight control and minimizing costly out of specification conditions
? Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments
? Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line
? A HART? Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital communication
